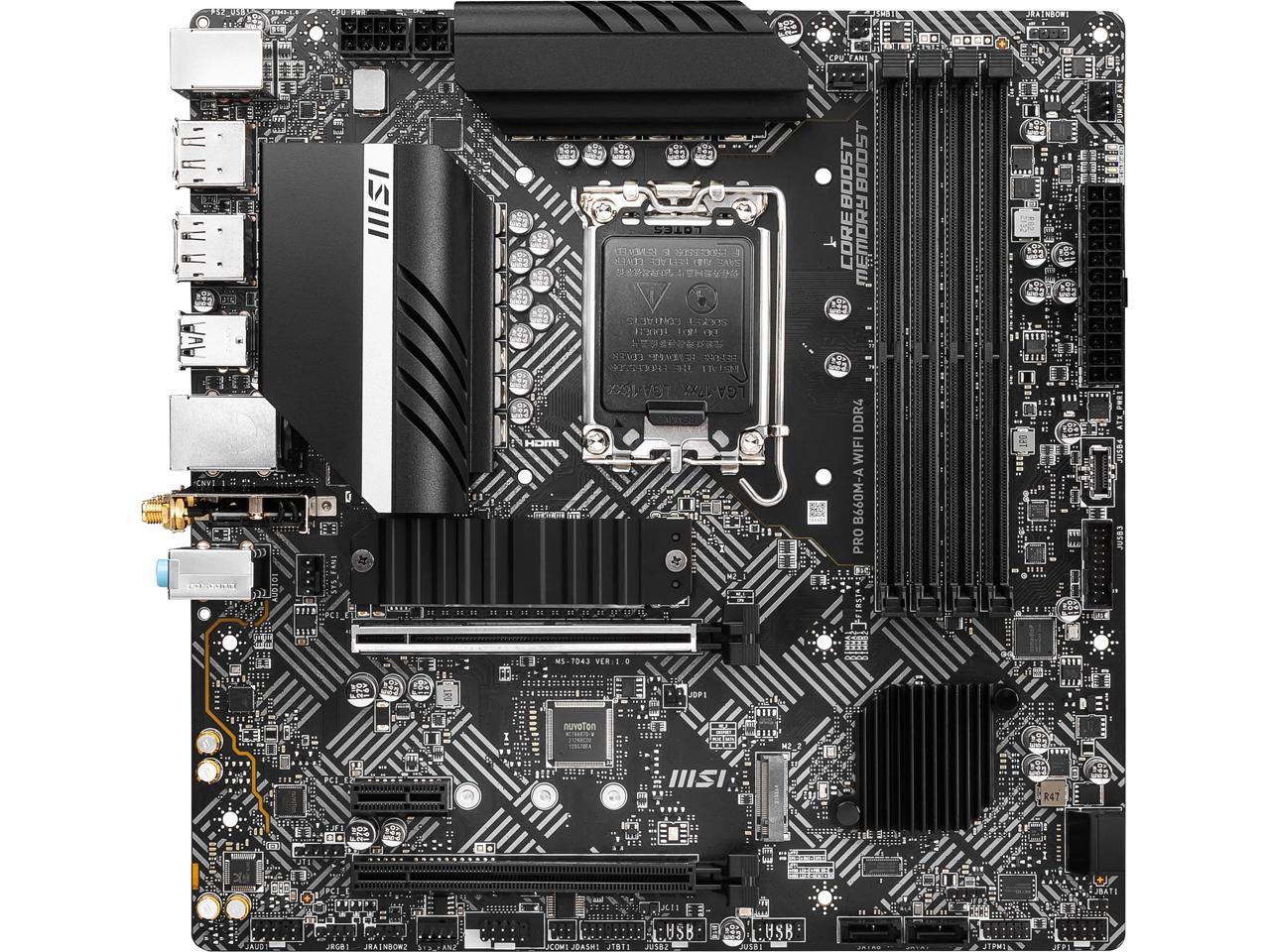

MSI PRO B660M-A WIFI DDR4 LGA 1700 Intel B660 SATA 6Gb/s Micro ATX Intel Motherboard

• The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
• The latest wireless solution supports MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
• Compatible with the latest PC chassis and perfect for external drives and other mobile devices.
• Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
• Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
• With premium layout and fully digital power design to support more cores and provide better performance.
• Easiest way to troubleshoot.
• Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.
• Featuring premium 2.5G LAN with LAN manager to deliver better network experience.
• Reward your ears with studio grade sound quality for the most immersive audio experience.

SUPPORTS INTEL CORE 12TH GEN PROCESSORS

The PRO B660M-A WIFI DDR4 motherboard supports 12th Gen Intel Core, Pentium Gold, and Celeron processors.
Form Factor: Micro-ATX

Socket Type: LGA 1700

Chipset: Intel B660

INTEGRATED COOLING FEATURES

VRM Heatsinks: Ensure excellent thermal dissipation under heavy loading.

PCB Cooling: Printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.

Chipset Heatsink: Provides passive cooling.

Frozr AI Cooling: Automatically adjusts system fan settings based on CPU & GPU temperatures.

FORTIFIED PCI-E 4.0 X16

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:

* 1 x PCI-e 4.0 x16 slots (with Steel Armor)

* 1 x PCI-e 3.0 x16 slots

* 1 x PCI-e 3.0 x1 slot

GEN4 M.2 CONNECTORS

The PRO B660M-A WIFI DDR4 motherboard features MSI's latest M.2 slots (Intel Optane supported):

* 2 x Gen4 x4 64Gb/s slots

M.2 SHIELD FROZR

Even the world's fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.

M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

4 X DDR4 DUAL CHANNEL (4800 MHZ OC)

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

XMP profiles in MSI BIOS are MSI OC LAB tested and can be easily enabled with auto power settings for optimized memory speed and stability.

WI-FI 6 & BLUETOOTH 5.2

WI-FI 6: Intel WiFi 6 module & Bluetooth 5.2 provide excellent remote connectivity.

2.5G LAN: A 2.5Gbps LAN controller delivers a premium network experience.

USB 3.2 Gen 2: Connect to devices and transfer files at high bandwidth rates: 10Gb/s.

HD Audio: 7.1-Channel High Definition Audio with Audio Boost.
